SATEL MCCU-20, LTE

Available soon!

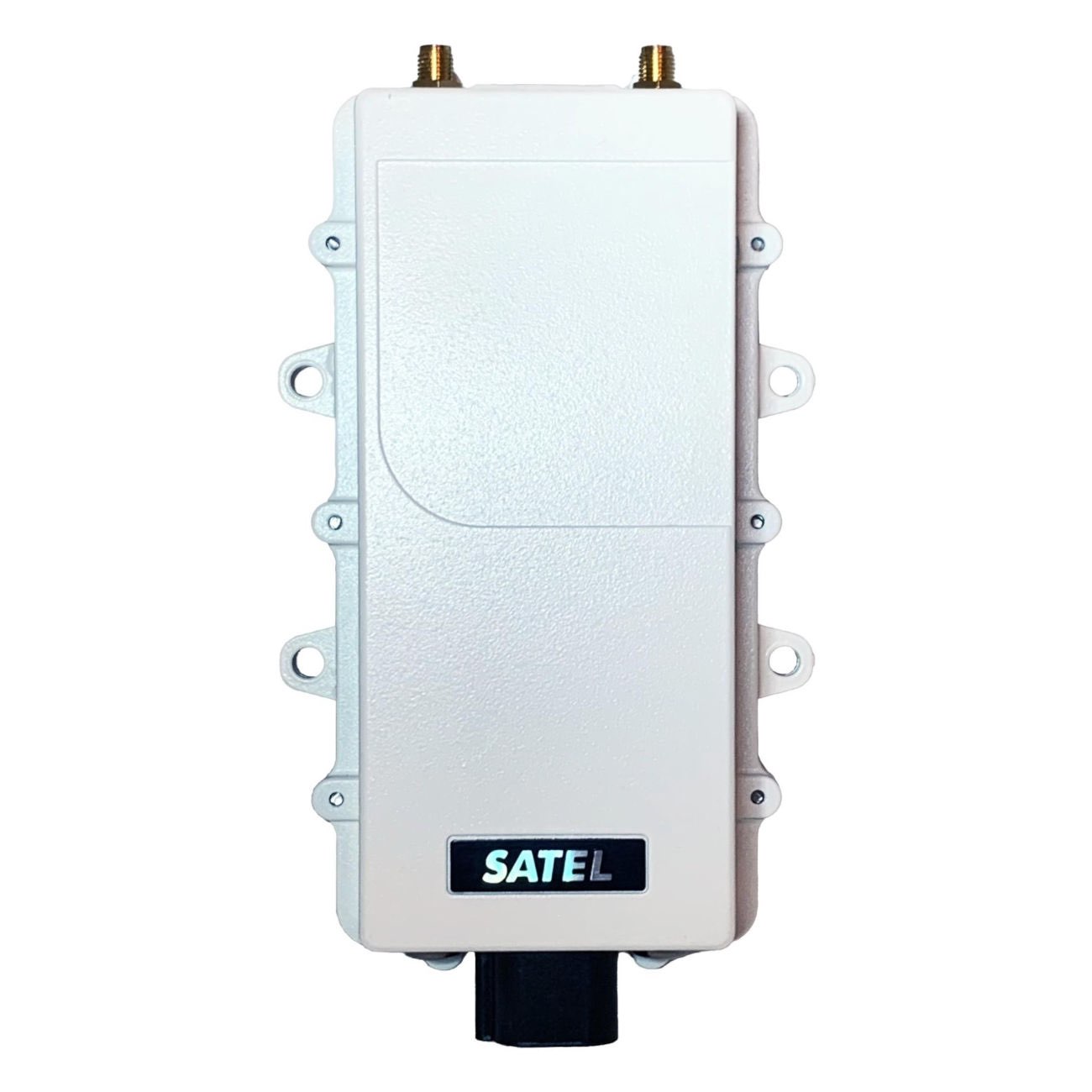

SATEL MCCU-20, LTE is an RTK transceiver for receiving the GNSS RTK data to a moving vehicle with NTRIP over LTE. It combines ultra-high reliability with robust mechanical design and cyber security.

SATEL MCCU-20, LTE has IP67 and IP69K classification. It is based on field proven mechanics, and all the electrical connections are equipped with surge protection. It is a perfect solution for harsh environments.

Meeting the requirements

  • Ultra-high reliability, often with back-up connectivity
  • Cyber security
  • Constant and low latency
  • Confirmed minimum throughput
  • Tolerance for very harsh environments

Type approvals for main markets are to be carried out.

One communication moduleLTE (NTRIP application, NMEA position upstream)
Serial interfaceRS-232 (TD, RD lines)
Serial data speed4800 – 460800 bps
Operating voltage+9 … +30 VDC (-15% / +20% )
Operating temperature–30°C to +70°C (operational)
Interface connectorDeutsch DT04-6P-CL09
Antenna connector50 Ohm, 2 x SMA (LTE)
Power consumptionTyp. 2.4 W (NTRIP receive) / Typ. <1 W (RTK receive)
HousingShielded / bare PCB inside a metal housing
Size / Weight146 mm x 95 mm x 47 mm / 520 g
IP classificationIP67 / IP69K
Cellular bandsGSM: B2/B3/B5/B8
WCDMA: B1/B2/B4/B5/B6/B8/B19
LTE-FDD: B1/B2/B3/B4/B5/B7/B8
/B12/B13/B18/B19/B20/B26/B28
LTE-TDD: B38/B39/B40/B41

In the EU the product falls under the scope of the radio equipment directive
2014/53/EU (RED). In the USA and Canada, the relevant FCC / ISED parts are fulfilled.

Free fallISO 16750-3:2012
IEC 60068-2-31:2008
Mechanical shock (half sine)ISO 16750-3:2012
IEC 60068-2-27:2008
Vibration (random)ISO 16750-3:2012
IEC 60068-2-64:2008
Ingress ProtectionIPX9K IEC 20653:2013
IP67 IEC 60529:2013
SafetyIEC 62368-1:2018 Edition 3.0
EMCEN 301 489-1 v.2.2.3, -3 v.2.1.1,
EN 301 489-52 v1.2.1, -19 v2.1.1
EN 55035:2017 + A11:2020
Radiated emissionsEN 55032:2015 + A11:2020
Electrostatic dischargeIEC 61000-4-2
Level 4: 4 kV contact, 8 kV air discharge
Radiated filed immunityIEC 61000-4-3 (2010-04)
IEC 61000-4-3:2020
Level 20 V/m
PolarityReverse polarity protection
Temperature and humidity (cyclic)ISO 16750-4:2006
IEC 60068-2-38:2009

Integrated global roaming eSIM and traditional SIM card slot for local operator’s subscription.


SATEL MCCU-20, LTE

Available soon!

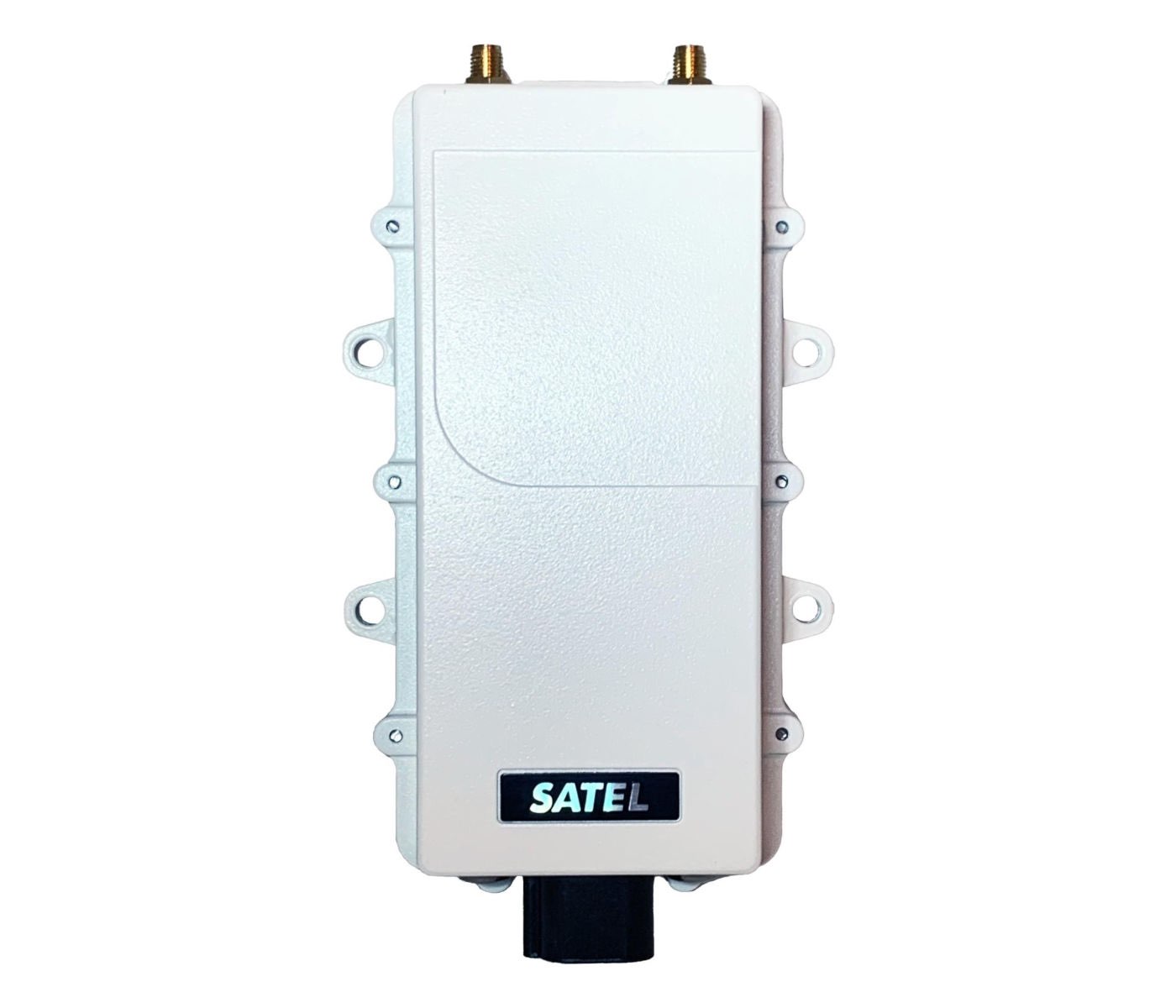

SATEL MCCU-20, LTE is an RTK transceiver for receiving the GNSS RTK data to a moving vehicle with NTRIP over LTE. It combines ultra-high reliability with robust mechanical design and cyber security.
