SATELLINE-M3-TR9

SATELLINE-M3-TR9 is a frequency hopping spread spectrum transceiver module that is, thanks to it’s small size, easy to integrate into a host device. It uses licence free band 902–928 MHz. The radio module is approved and ready to use in Canada, USA and Australia.

Small and fast radio module

  • Low power consumption
  • Wider operating voltage range than most of the modules available
  • Functional temperature from –40 °C up to +70 C
  • Can be used in different weather conditions, from icy to blazing
  • Exceptional vibration tolerance; excellent choice for unsteady, moving stations

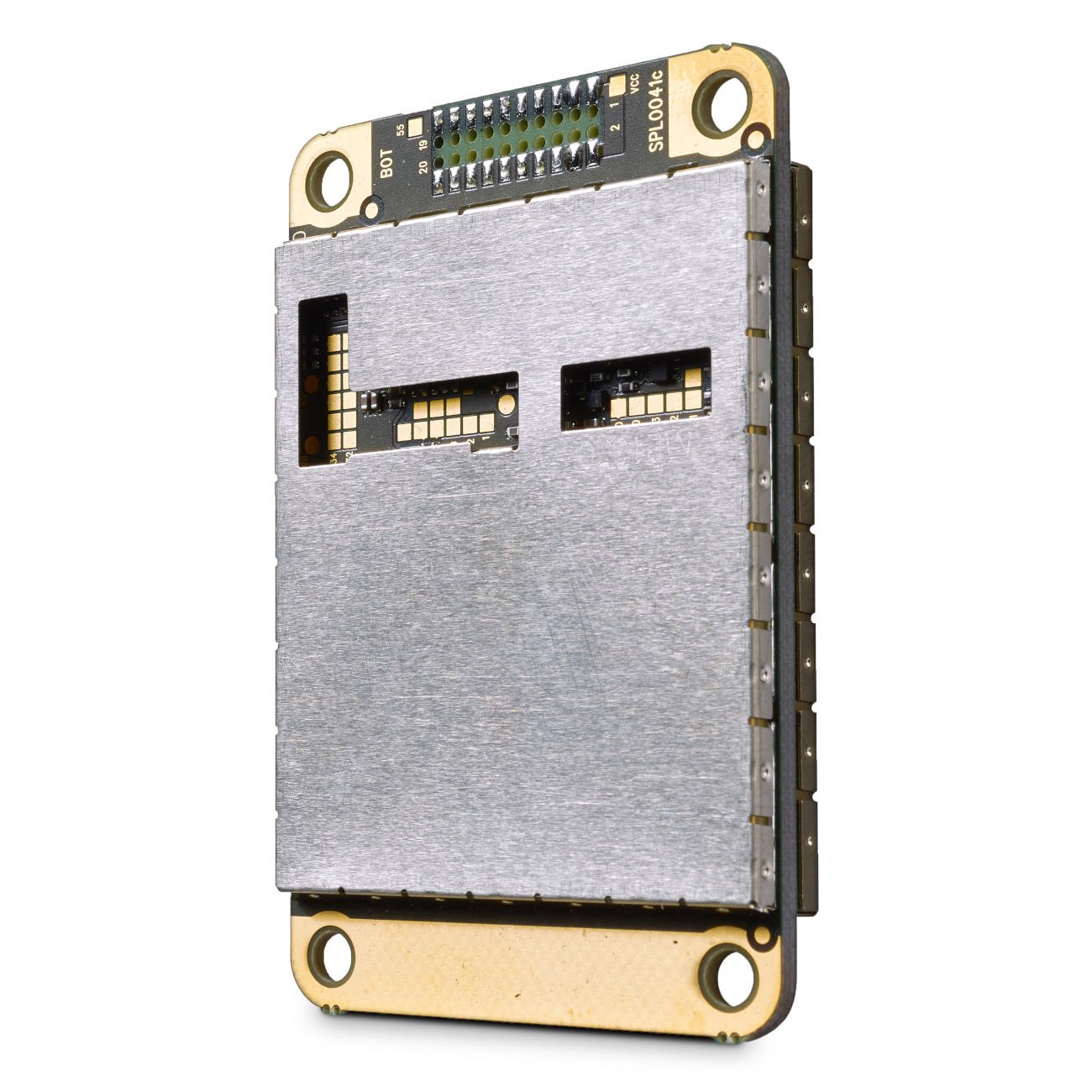

SATELLINE-M3-TR9 is available without housing in PCB format.

SATELLINE-M3-TR9 is part of the well-known SATEL module family. SATEL radio modules suit all kinds of needs of OEM customers.

Frequency range  902 … 928 MHz
Spreading method Frequency hopping
Hopping bands 7, user selectable
Hopping patterns 15 per band, 105 total, user selectable
Hopping channels 50–112, user selectable
Sensitivity/Carrier power -109 dBm/  1 W
Interface CMOS-UART
Data speed Radio / Serial 115200 bps
Vibration tolerance 25 g, up to 2 kHz sinusoidal
Operating voltage +3.5 … 5.5 Vdc
Power consumption 300 mW (RX) / 3.2 W (TX 1 W)
Size/Weight 57 x 36 x 6.7 mm / 20 g
Connectors 1.27 mm pitch socket / U.FL
  • SATELLINE-M3-TR9, region all (YM7900)
  • SATELLINE-M3-TR9, region US/CA (YM7910)
  • SATELLINE-M3-TR9, region Australia (YM7915)
  • SATELLINE-M3-TR9, DTE TOP/U.FL same side (YM7920)


SATELLINE-M3-TR9

SATELLINE-M3-TR9 is a frequency hopping spread spectrum transceiver module that is, thanks to it’s small size, easy to integrate into a host device. It uses license-free band 902–928 MHz. The radio module is approved and ready to use in Canada, USA and Australia.

Small and fast radio module

  • Low power consumption
  • Wider operating voltage range than most of the modules available
  • Functional temperature from –40 °C up to +70 C
  • Can be used in different weather conditions, from icy to blazing
  • Exceptional vibration tolerance; excellent choice for unsteady, moving stations

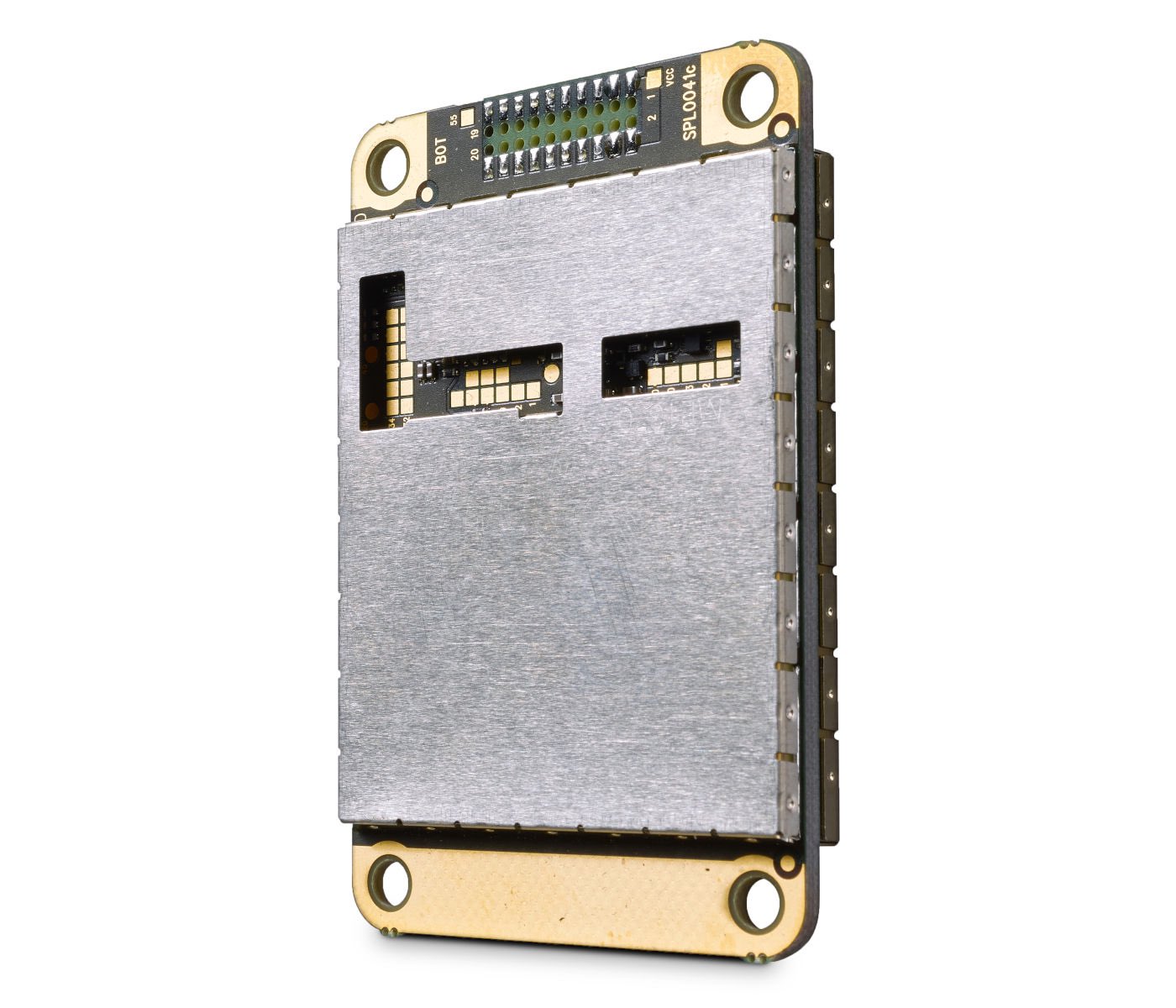

SATELLINE-M3-TR9 is available without housing in PCB format.
