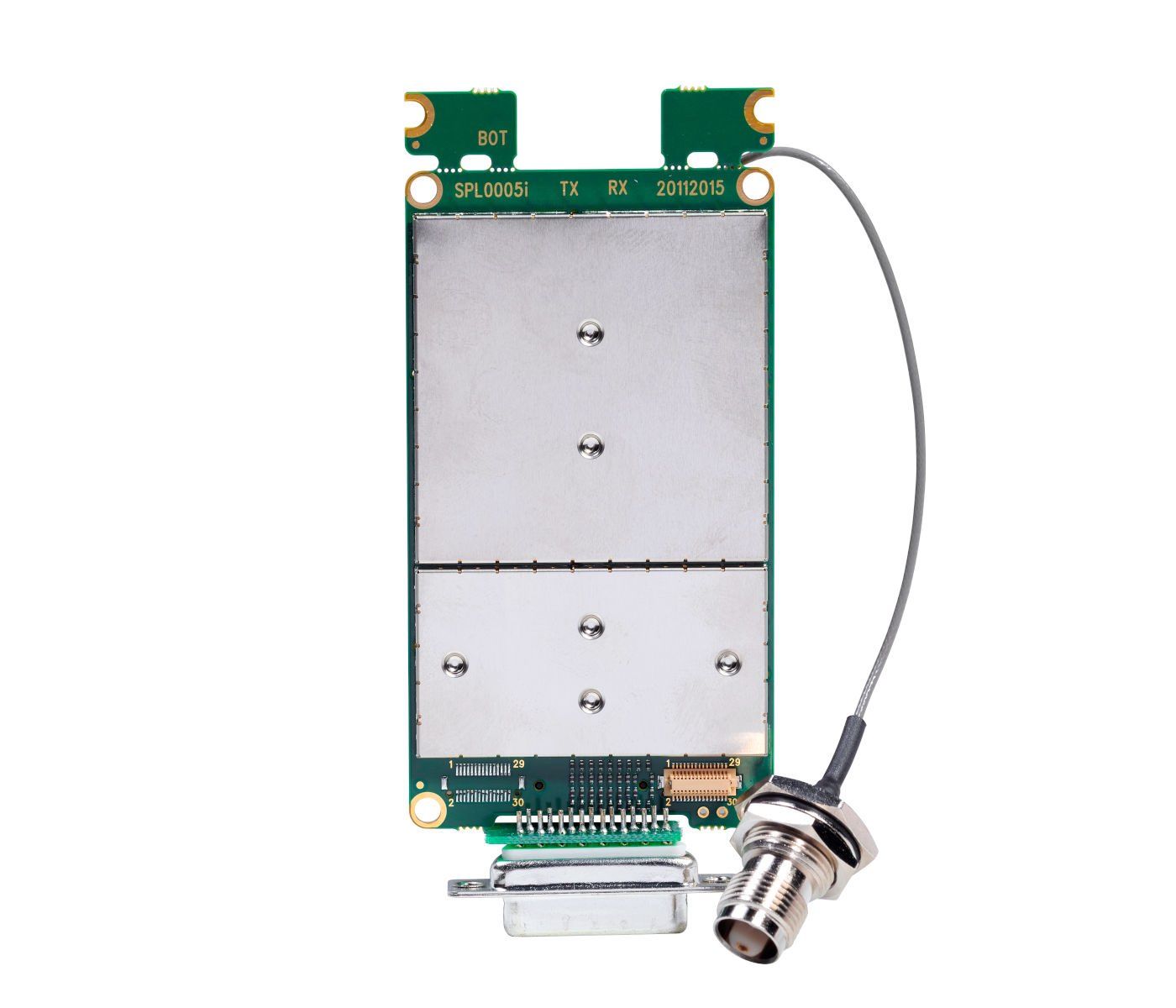

SATELLINE-M3-TR1 869
SATELLINE-M3-TR1 869 transceiver module is a compact, lightweight and flexible solution with low power consumption. SATELLINE-M3-TR1 869 is ready to use on the pan-European (869 MHz) and India (865…867 MHz) license-free channels with default settings. It is allocated for narrowband telemetry, alarm and data transfer applications.
Easy and cost-efficient setup of network
SATELLINE-M3-TR1 869 is HW compatible with SATELLINE-EASy 869 modems, and in India on respective frequency band 865…867 MHz. Programmable 0.5 / 1 W output power and 25 kHz channel width ensures a successful connection. Each radio modem of the SATELLINE-TR1 869 network can be used as a repeater. The Message Routing function facilitates easy setup of even a large network with minimum investment in equipment.
SATELLINE-M3-TR1 869 can be supplied without a housing as a small-size module or in an aluminium housing. Customers can also specify the interface connector to be D15 female, 26-pin male strip or 26-pin female socket. The antenna connector can be TNC, SMA, MCX or MMCX. The applicable serial interfaces for TR1 869 are RS-232, RS-422, LVTTL or TTL.
