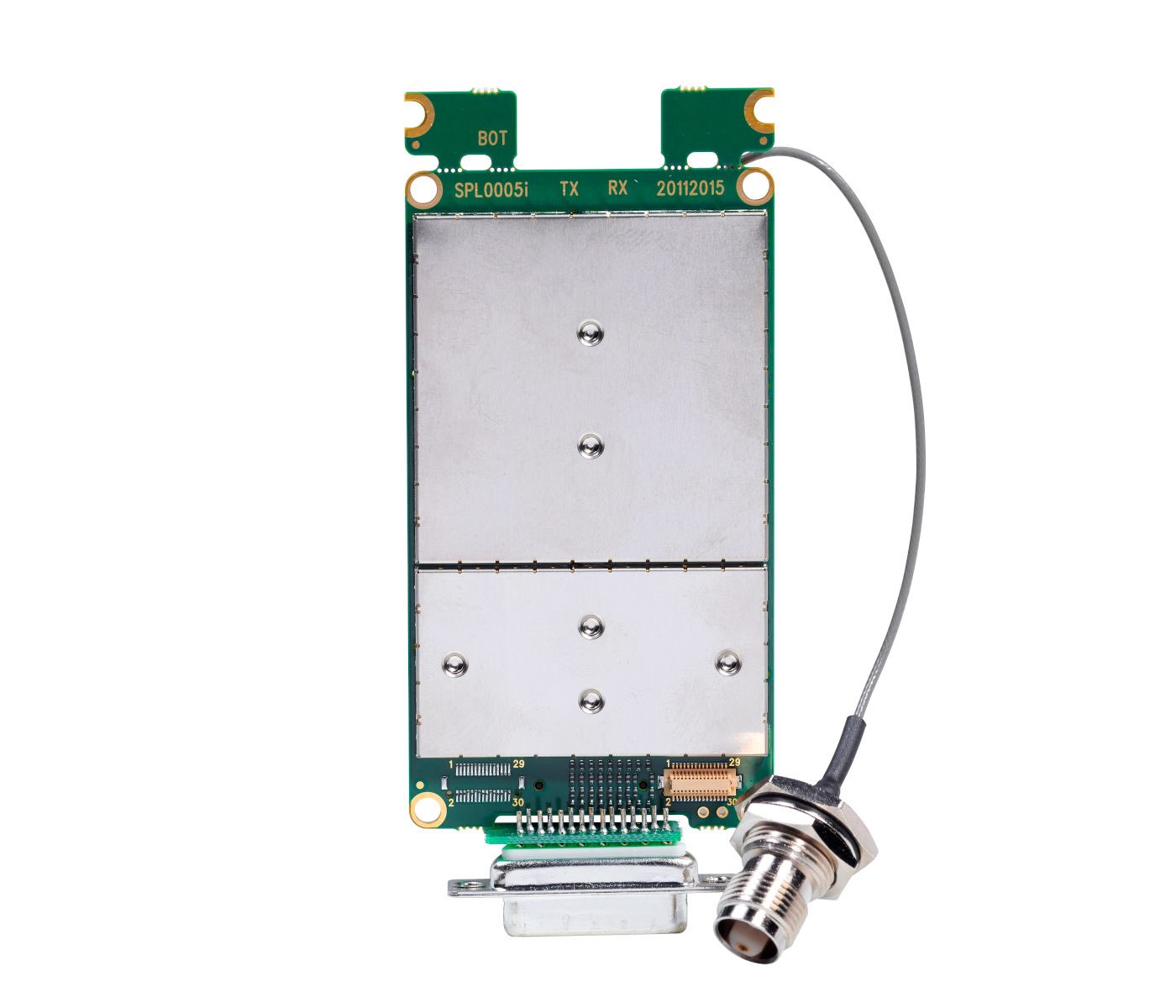

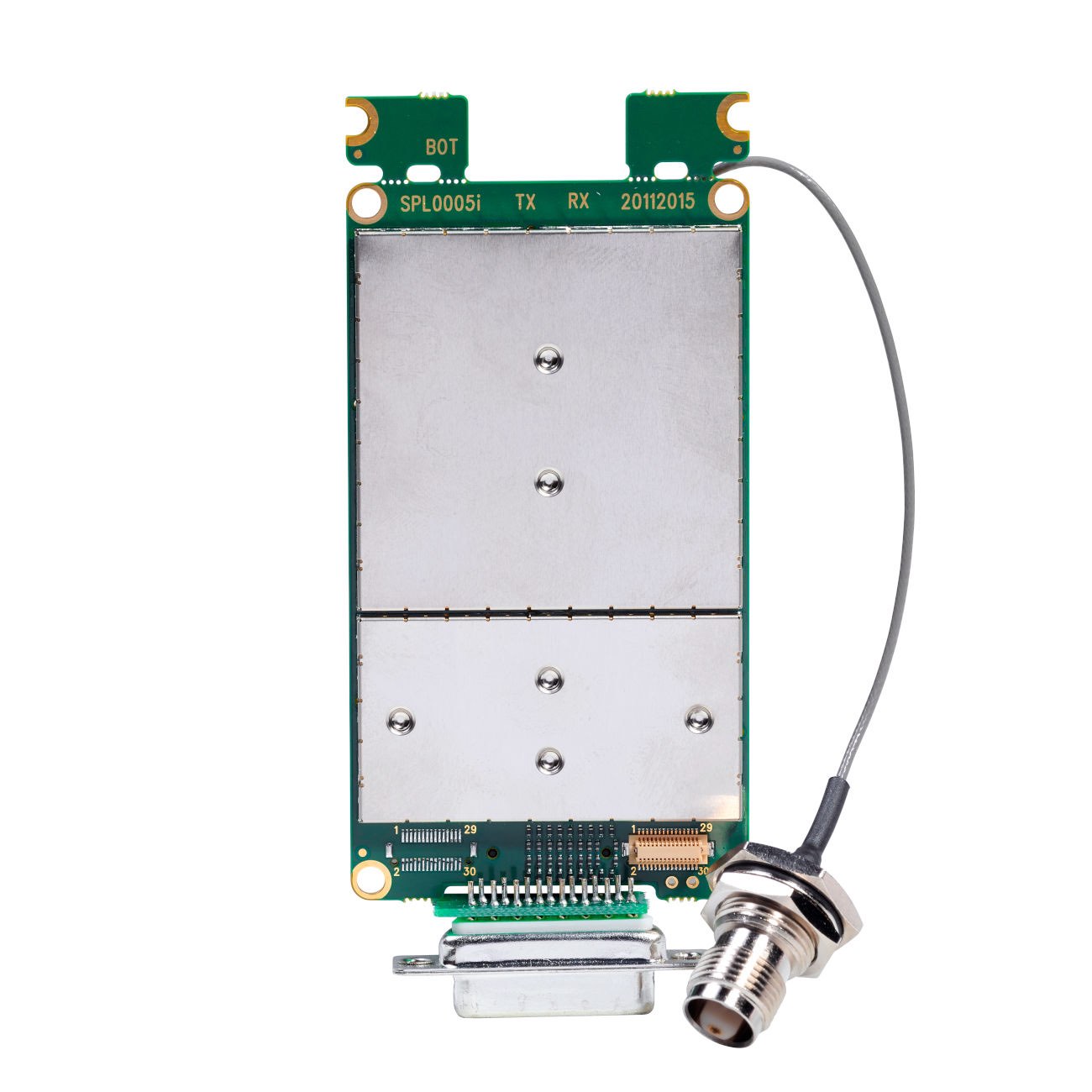

SATELLINE-M3-TR1

SATELLINE-M3-TR1 transceiver module is a compact, flexible and lightweight solution with low power consumption. The module is specifically designed for small mechanics.

It is an excellent choice for applications requiring long-range distances.

Lightweight solution for long-range connections

The module has a wide (90 MHz / 70 MHz) tuning range and the operation frequency can be selected within the ranges 330…420 MHz and 403…473 MHz. The channel spacing 12.5, 20 and 25 kHz are software-selectable. The output power of 1W enables long connection distances.

SATELLINE-M3-TR1 has two operating voltage levels +3.5 … +7.5 / +7 … +25 Vdc (-15% / +20%). The level can be changed by replacing the PWR module.

Flexible and compatible module

The module can be supplied without a housing as a small-size module or in an aluminum housing. Customers can also specify the interface connector to be D15 female, 26-pin male strip or 26-pin female socket. The antenna connector can be TNC, SMA, MCX or MMCX. The applicable serial interfaces for M3-TR1 are RS-232, RS-422, LVTTL or TTL.

SATELLINE-M3-TR1 is compatible with the widely used SATELLINE-EASy radio modem family and can also be included in systems based on other manufacturers’ protocols.

Model with an AES128 bit encryption support is available too.

Frequency range 330…420 MHz / 403 … 473 MHz
Tuning range 90 MHz / 70 MHz
Channel spacing 12.5 / 20 / 25 kHz selectable
Sensitivity/Carrier power -114 dBm / 1 W
Interface Port1 fixed: RS-232
Port2 options: LVTTL, TTL or RS-232/-422 (Port2 RS-232/-422 is programmable)
Data speed 19200 / 38400 bps
Operating voltage range +3.5 … +7.5 / +7 … +25 Vdc (-15% / +20%)
Power consumption 1.2 W / 3 W@0.5W, 7W@1W
Size/Weight 89 x 49 x 10 mm / 50 g PCB format
  • SATELLINE-M3-TR1 (YM6300 / YM6305)
  • SATELLINE-M3-TR1 with AES128 encryption support (YM6310 / YM6315)
  • To compose the correct product order code, please use this Configuration Tool: TR1 Configuration Tool
