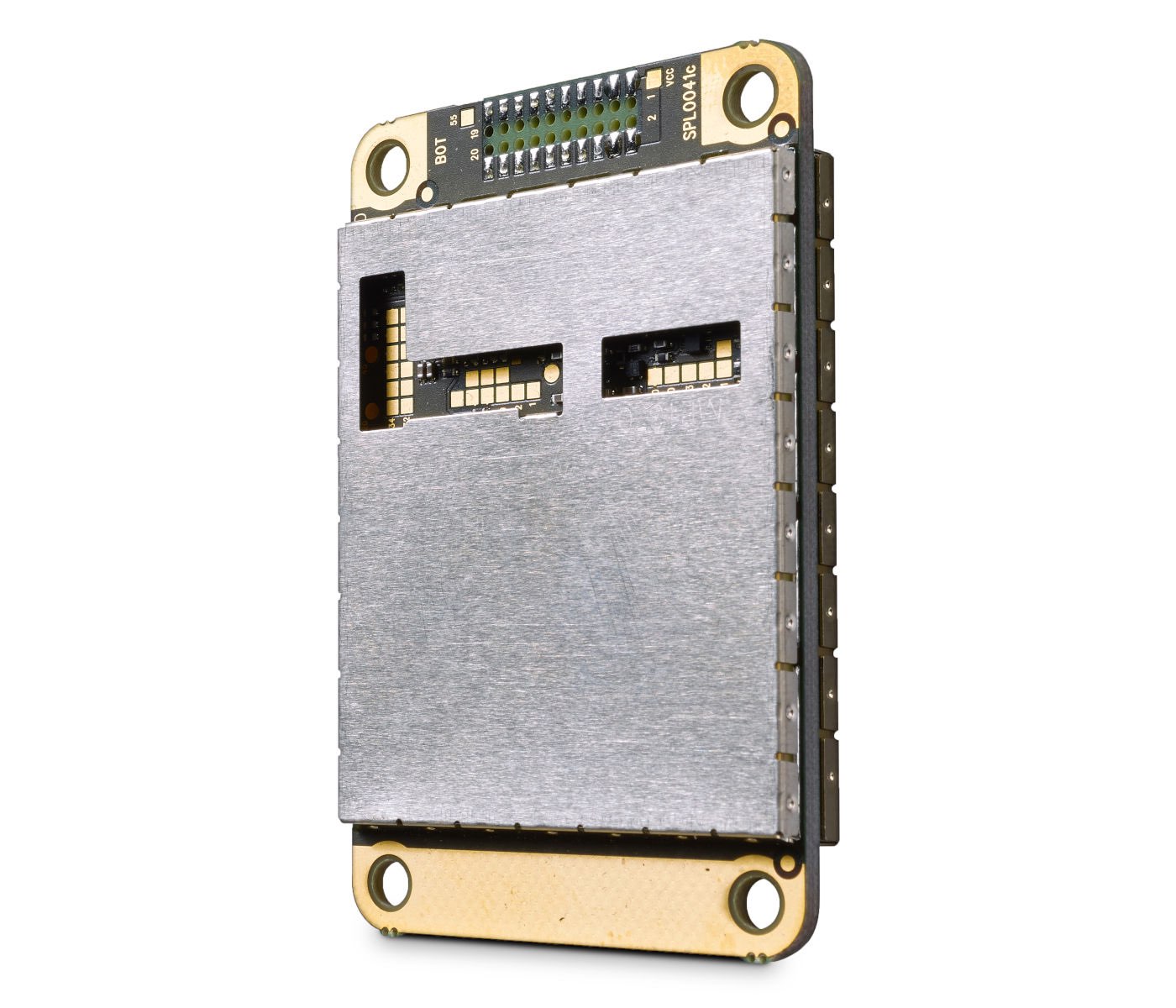

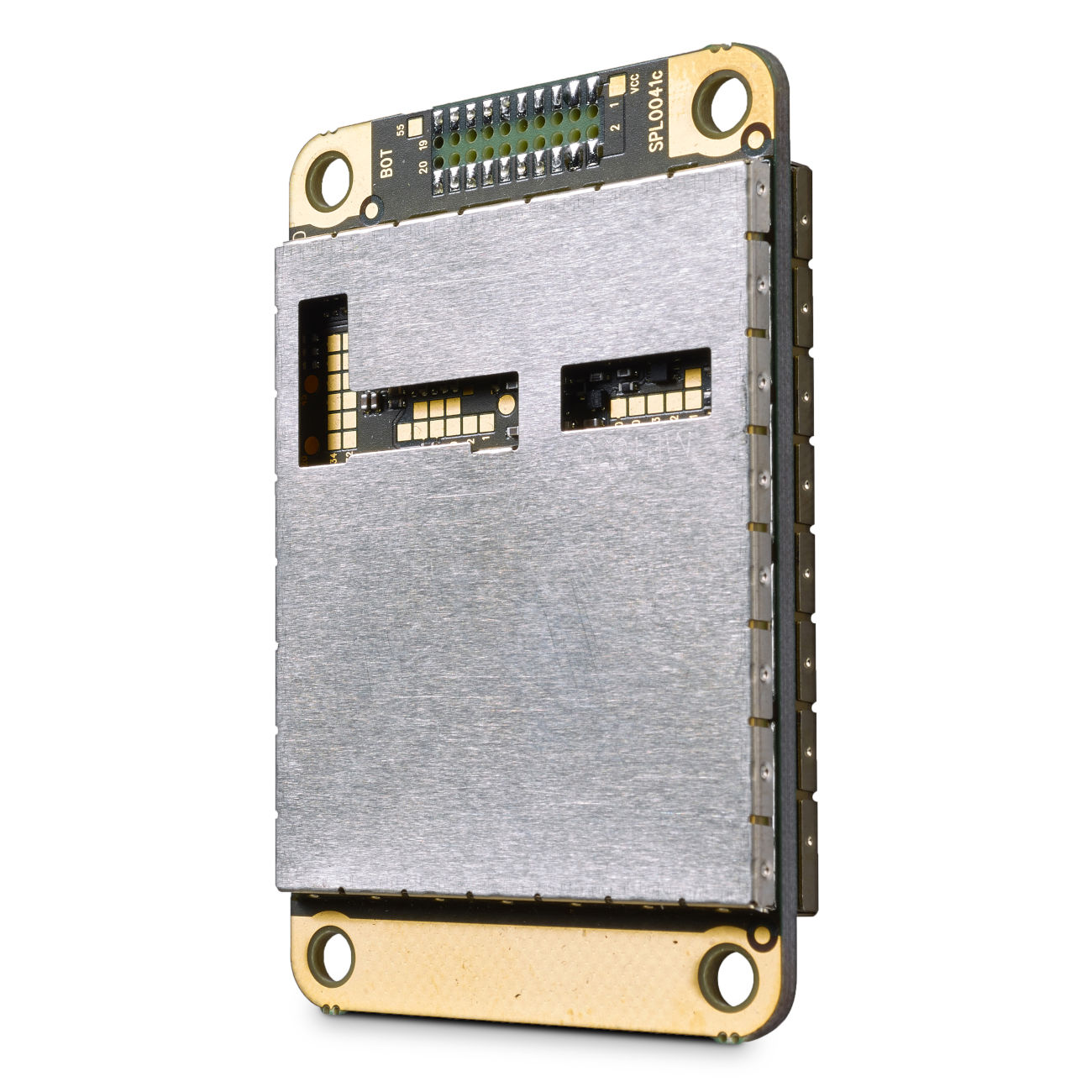

SATEL-TR49
SATEL-TR49 is a small dual band and multimode transceiver. It uses the licensed 410-475 MHz and license-free 902-928 MHz bands. This is the first product available in SATEL GO product family with revolutionary features: two frequencies in compact design, practical interfaces, and easy integration.
Specifications 902-928 MHz
- Spreading method: Frequency hopping
- Hopping bands: 7, user selectable
- Hopping patterns: 15 per band, 105 total, user selectable
- Hopping channels: 50–112, user selectable
- Sensitivity/ Carrier power: -109 dBm / 1 W
- Data speed: Radio / Serial 115200 bps
- Modulation: 2-GFSK
Specifications 410…475 MHz
- Tuning range: 65 MHz
- Channel spacing: 12.5 / 20 / 25 kHz, selectable
- Sensitivity/Carrier power: -120 dBm for 1% BER / 1 W
- Data speed: Radio 19200 bps / Serial 115200 bps
- Modulation: GMSK, 4-GFSK
- Encryption support: AES128 as default / AES256 as an order option
SATEL-TR49 is compatible with SATELLINE / SATEL product lines on 410-475 MHz and on 902-928 MHz bands. SATEL-TR49 is a frequency hopping spread spectrum transceiver module that is, thanks to it’s small size, easy to integrate into a host device.
Complies with requirements in the EU, USA, Canada, Australia, Brazil and New Zealand.
