SATEL EASy-Proof

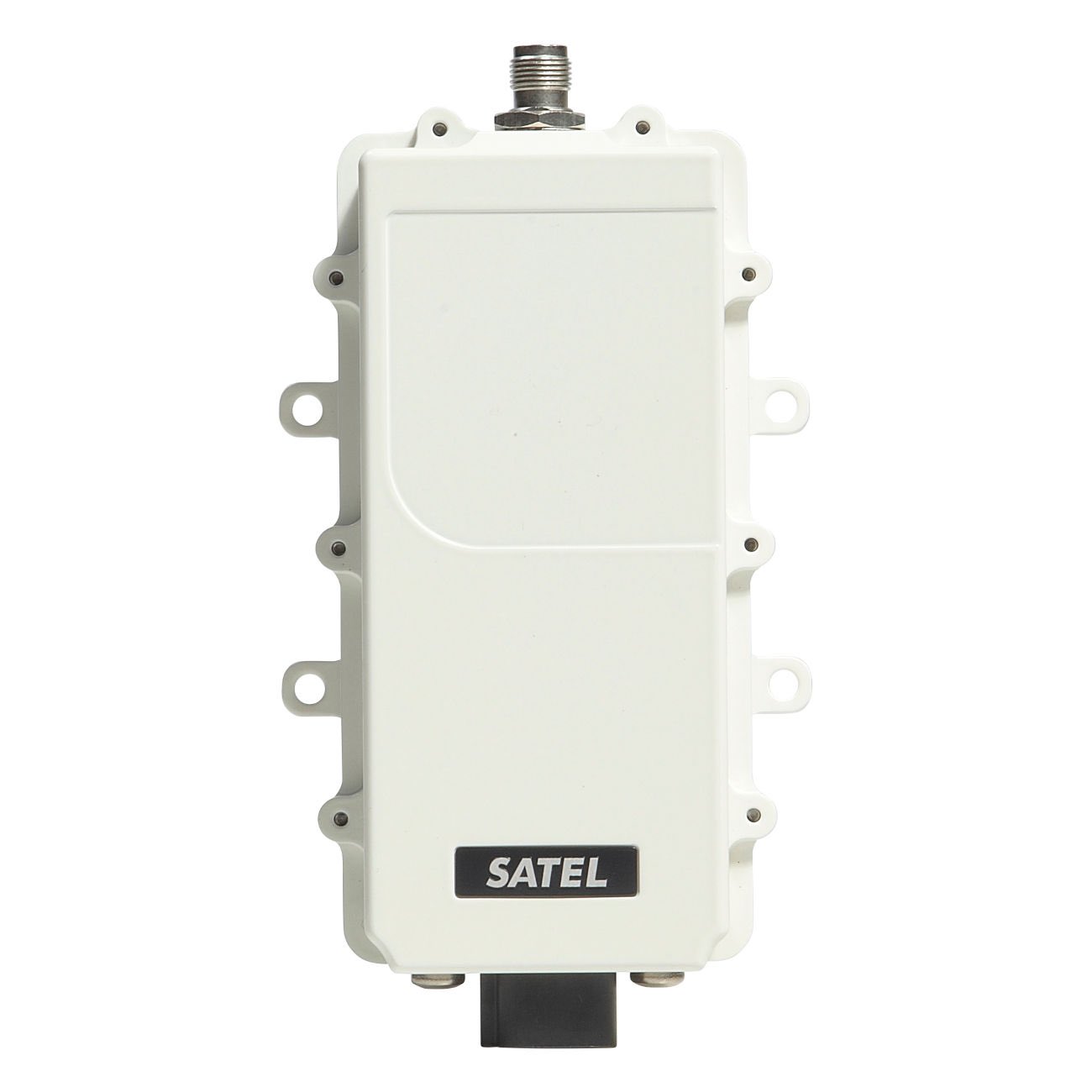

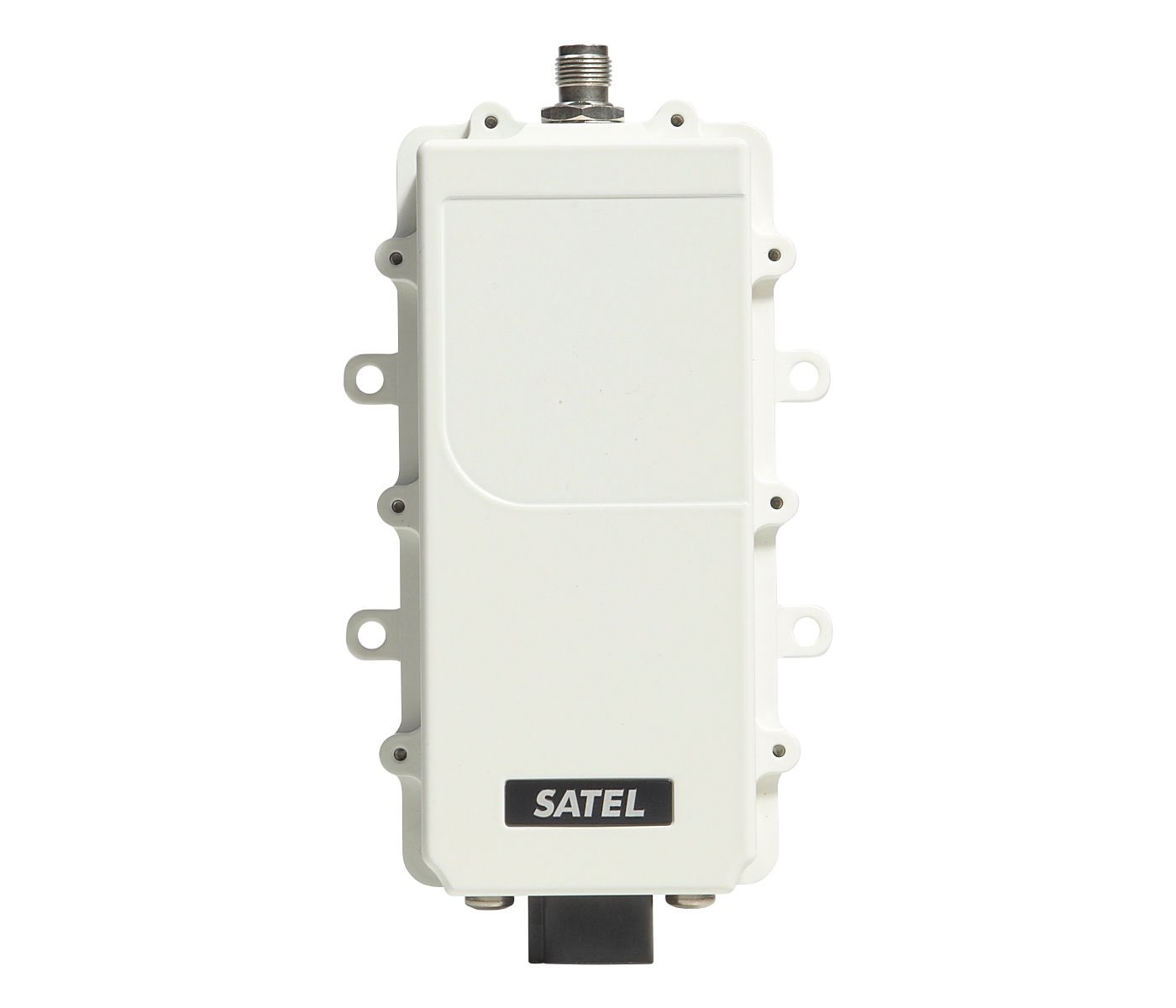

SATEL EASy-Proof has IP69K sealed housing and connectors to ensure the functionality even under extremely harsh environmental conditions e.g. construction equipment, precision farming, all-terrain vehicles, automotive and marine.

Compact size, wide (90 / 70 MHz) tuning and operating voltage (+7 … +27.5 Vdc (-15% / +20%)) range combined with IP69K sealed housing and connectors make this device a perfect match to systems where the high-quality communication and the modularity are valued. 12.5, 20 and 25 kHz channel widths are software-selectable. The output power of 1W enables long connection distances.

SATEL EASy-Proof is compatible with SATELLINE modems and supports GMSK based communication protocol.


Frequency range 330…420 MHz / 403… 473 MHz
Tuning range 90 MHz / 70 MHz
Channel spacing 12.5 / 20 / 25 kHz selectable
Sensitivity/Carrier power -114 dBm / 1 W
Interface RS-232
Data speed Radio 19200 bps / RS 38400 bps
Operating voltage +7 … +27.5 Vdc (-15% / +20%)
Power consumption 1.2 W / 7 W
Size/Weight 176 mm x 95 mm x 42 mm / 460 g
Connectors Deutsch DT04-6P-CL09 / TNC f
  • SATEL EASy-Proof (YM6580)
  • SATEL EASy-Proof with AES128 encryption support (YM6585)
CRF-1 (YC1101) RG58, length 1 meter with TNC male / TNC female -connectors
CRF-5F (YC1105) /
CRF-5M (YC1106)		 RG-58, length 5 meter with TNC male / TNC female -connectors OR CRF-5M TNC male / TNC male -connectors
CRF-50 (YC1150) Length 50 cm with TNC male / TNC male from band-pass filter to radio
ECOFLEX10 (YC1004) Low loss (0.9 dB / 10 m) cable for cable lengths up to 20 meter with N or TNC -connectors
ECOFLEX15 (YC1005) Low loss (0.6 dB / 10 m) cable for cable lengths over 20 meter with N -connectors
NARS-1F (YC0200) Interface adapter with D15 male / D9 female –connectors, 650 mA fuse. Including power supply wires and programming switch
NARS-1F-4A (YC0204) Similar than NARS-1F, but with 4A fuse
NARS-EP (YC0270) Adapter cable with Deutsch DT06-6S-CE06 / D15 female connectors, to be used with NARS interface adapters
Antennas Half Wave, Quarter Wave, Helix, Directional and Omnidirectional Antennas
Power supply DIN (YP7524) Power supply for DIN-rail, Input 100–240 Vac / Output 24 Vdc / 2.5 A
A-AC (YP0115) Power supply for tabletop or wall mount usage. Input 100–240 Vac / Output 15 Vdc / 4.6 A
C-P-EP (YC0320) Power cable 30 cm, Deutsch DT06-6S-CE06 / 4-pin ODU (to the repeater station to power up the radio)
