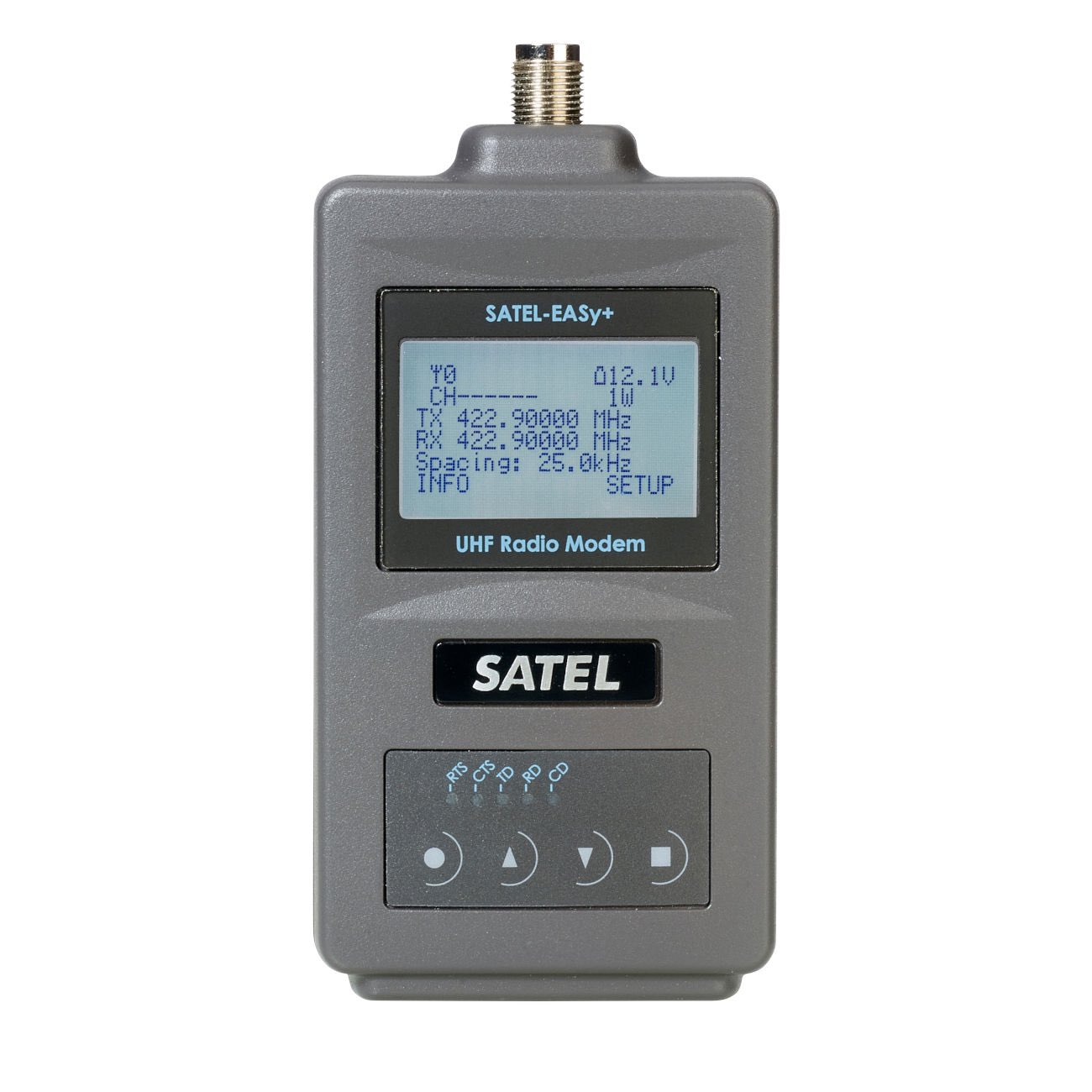

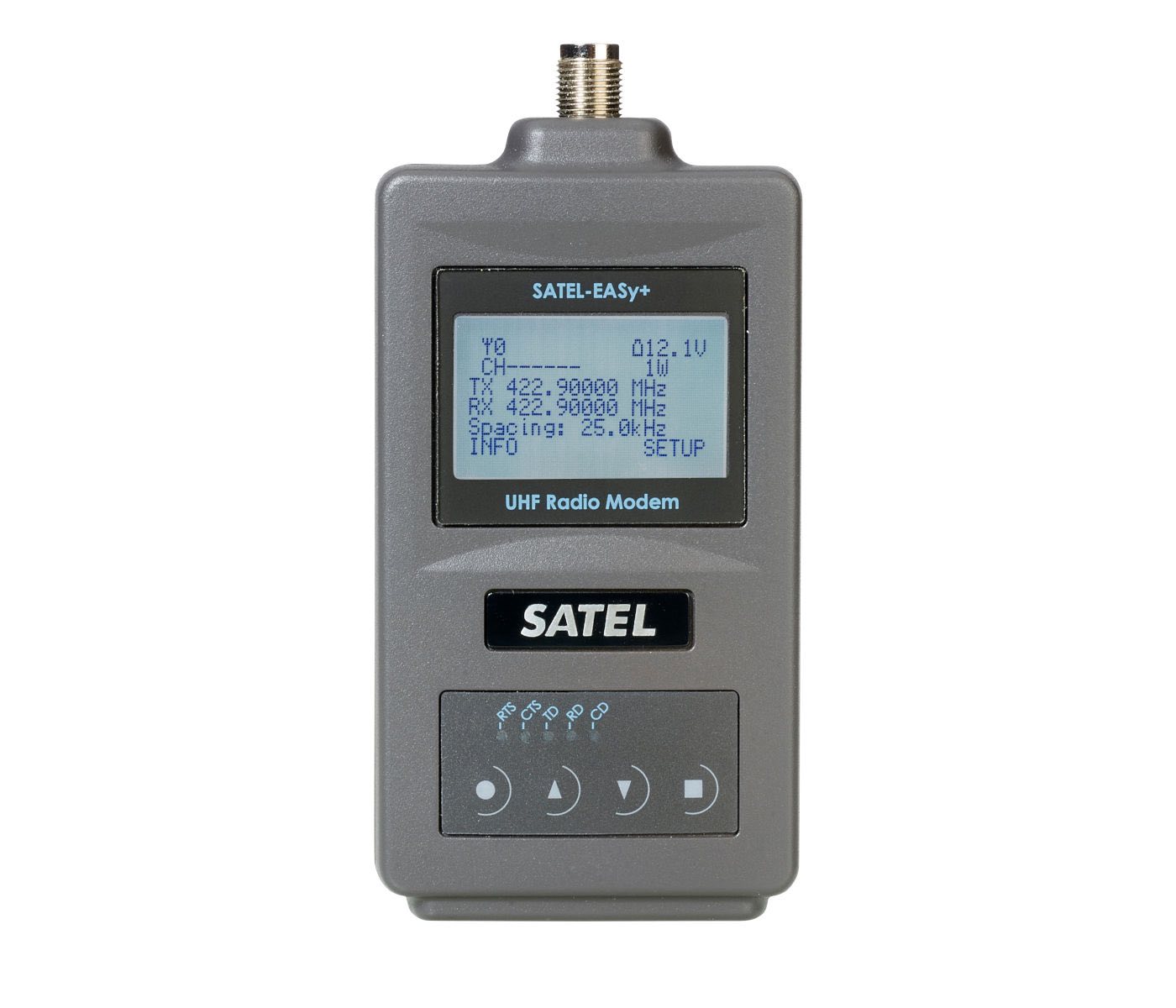

SATEL-EASy+

SATEL-EASy+ offers a modern solution for various long-range applications. The first model uses 400 MHz frequency band, and it has an improved LCD display to enable easy configuration and more memory. Several interfaces will be available from serial (first variant) to USB.

  • 70 MHz tuning range (403 … 473 MHz)
  • Selectable channel spacing 12.5 / 20 / 25 kHz
  • Many options for configuration, e.g. through radio
  • Efficient diagnostics tools and accumulation of operation statistics data

SATEL-EASy+ will support the following software:

  • SATEL NETCO DEVICE (Configuration)
  • SATEL Configuration Manager (Configuration)
  • SATEL NMS PC (Configuration and monitoring)
  • SATEL SaTerm (Terminal SW for routing setup -configuration, SL commands and data tests)
  • SATEL NETCO DESIGN (Configuration)

SATEL-EASy+ supports SATEL NMS PC and it is compatible with earlier radio modems operating in the same frequency range including SATELLINE-EASy, M3-TR4 based radios and SATELLINE-3AS NMS modems.

The benefits of network monitoring

  • Enhanced reliability, through advance indication of anticipated faults and failures
  • Reduced configuration and maintenance costs, through remote configuration
  • An efficient tool for network development

If a problem occurs, for example, in an electricity or water network, SATEL-EASy+ radios transfer this data reliably in real time, which enables locating and repairing the failure fast, thus saving money.

The following variants are coming next:

1W variant with USB, ETH and BT interface

  • For transmitting and receiving data and modem configuration

1W variant with 350 MHz frequency band

  • With/without LCD user interface, with function buttons and AES encryption support
  • Excellent choice for GNSS industry in Asia and utility business in Middle East


1W variant with SATEL-TR489 module

  • Three frequency bands: licensed 403 … 473 MHz, license-free 856 … 876 MHz, license-free 902 … 928 MHz
  • With AES encryption support, LCD user interface and function buttons
  • Frequencies cover all continents

35W variant SATEL-EASy Pro+

  • 403 … 473 MHz frequency band
  • IP67 classified housing
  • With AES encryption support, LCD user interface and function buttons
  • For base stations or outdoor use

Values are subject to change without a notice.

Frequency range 403 … 473 MHz
Tuning range 70 MHz
Channel spacing 12.5 / 20 / 25 kHz selectable
Modulation 4FSK, 8FSK, 16FSK, GMSK
Sensitivity BER <10E-3 (FEC ON) -116 dBm @ 12.5 kHz (4FSK) / -112 dBm @25 kHz (4FSK) / -106 dBm @25 kHz (16FSK)
Interface RS-232, -422, -485
Data speed of radio interface 9600 bps @ 12.5 kHz / 19200 bps @ 25 kHz (4FSK, FEC OFF)
7200 bps @ 12.5 kHz / 14400 bps @ 25 kHz (4FSK, FEC ON)
14400 bps @ 12.5 kHz / 28800 bps @ 25 kHz (8FSK, FEC OFF)
9600 bps @ 12.5 kHz / 19200 bps @ 25 kHz (8FSK, FEC ON)
14400 bps @ 12.5 kHz / 28800 bps @ 25 kHz (16FSK, FEC ON)
Carrier power 0.01 … 1 W
Data speed of serial interface 1200 – 115200 bps
Encryption support AES128 as default / AES256 as an order option
Operating voltage range +7 … +27.5 Vdc (-15% / +20%)
Power consumption < 1.5 W (receive)
< 5.5 (transmit 1 W)
< 0.05 W (standby)
Size/Weight 138 x 67 x 29 mm / < 350 g
Connectors TNC, 50 ohm, female

Values are subject to change without a notice.

  • YM6010 SATEL-EASy+ without display, with encryption support
  • YM6015 SATEL-EASy+ without display and encryption support
  • YM6050 SATEL-EASy+ with display, with encryption support
  • YM6055 SATEL-EASy+ with display, without encryption support
CRS-2M (YC0103) / CRS-2F (YC0104) Interface cable, length 2 meter, includes power supply wires, with D15 / D9 male OR CRS-2F female -connectors
CRS-9M (YC0203) Interface cable, length 2 meters, with D9 male / D9 male connectors
CRS-PB (YC0501) Interface cable, length 2 meter, includes power supply wires, with D15 / D9 male -connectors for RS-485 interface
CRS-SAE-8-pin (YC0372) Interface cable, length 2 meter, includes SAE power connector, with D15 / ODU 8-pin male- connectors
CRS-RJ45 (YC0280) Interface cable, length 2 meter, with D15 / RJ45 male -connectors
CRS-TSU (YC0271) Length 2 meters or 50 cm, with D15 male / D15 female connectors, to be used between radio modem and I-LINK 100
CRS-NMS (YC0302) Length 1.5 meters, with D15 male / 2 x D9 female connectors from Master modem to user system and NMS PC, including power supply wires
CRF-1 (YC1101) RG58, length 1 meter with TNC male / TNC female -connectors
CRF-5F (YC1105) /
CRF-5M (YC1106)		 RG-58, length 5 meter with TNC male / TNC female -connectors OR CRF-5M TNC male / TNC male -connectors
CRF-50 (YC1150) Length 50 cm with TNC male / TNC male from band-pass filter to radio
ECOFLEX10 (YC1004) Low loss (0.9 dB / 10 m) cable for cable lengths up to 20 meter with N or TNC -connectors
ECOFLEX15 (YC1005) Low loss (0.6 dB / 10 m) cable for cable lengths over 20 meter with N -connectors
NARS-1F (YC0200) Interface adapter with D15 male / D9 female –connectors, 650 mA fuse. Including power supply wires and programming switch
NARS-1F-4A (YC0204) Similar than NARS-1F, but with 4A fuse
NARS-2 (YC0485) Interface adapter with D15 male / screw connectors, 650 mA fuse adapter for RS-422 / 485 interface
Antennas Half Wave, Quarter Wave, Helix, Directional and Omnidirectional Antennas
Power supply DIN (YP7524) Power supply for DIN-rail, Input 100–240 Vac / Output 24 Vdc / 2.5 A. Size 125.2 x 102 x 32 mm
A-AC (YP0115) Power supply for tabletop or wall mount usage. Input 100–240 Vac / Output 15 Vdc / 4.6 A
